Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1108
- Manufacturer
- UTECO
- Modello

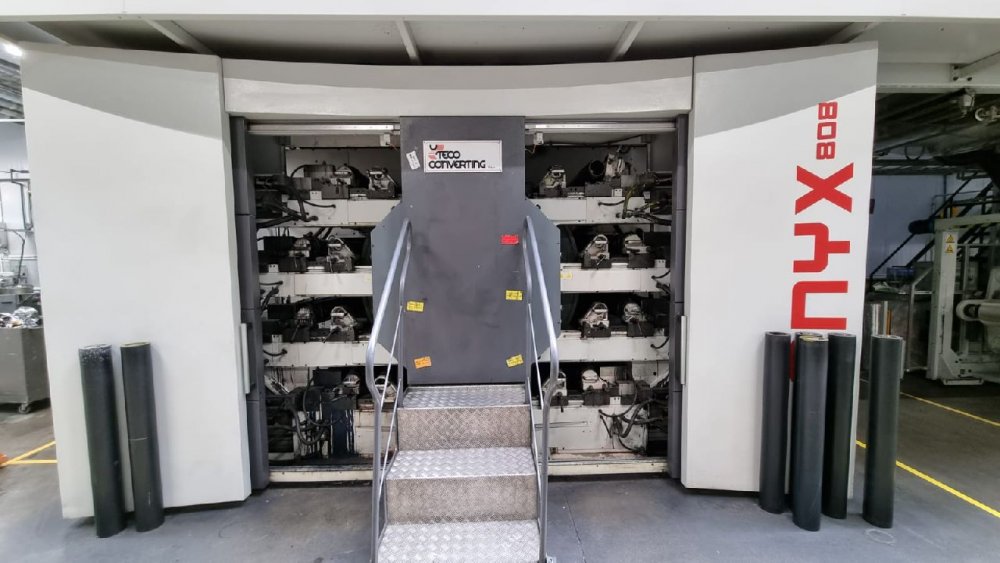

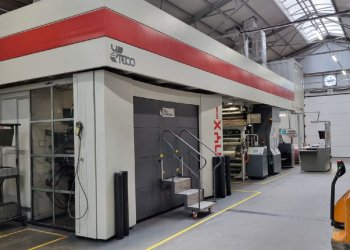

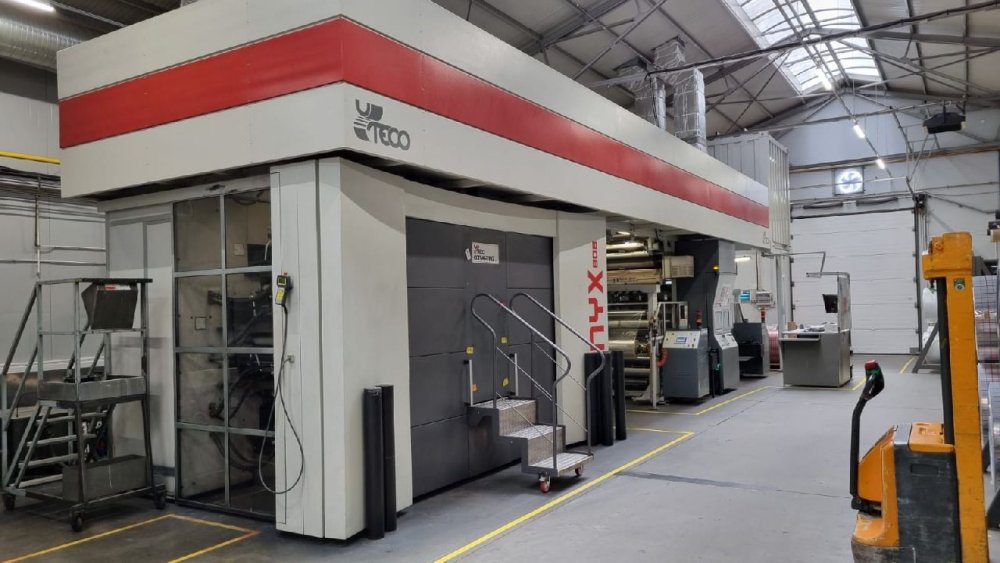

- ONYX 808
- Year
- 2011
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1150
- Print width (mm)
- 1100
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying

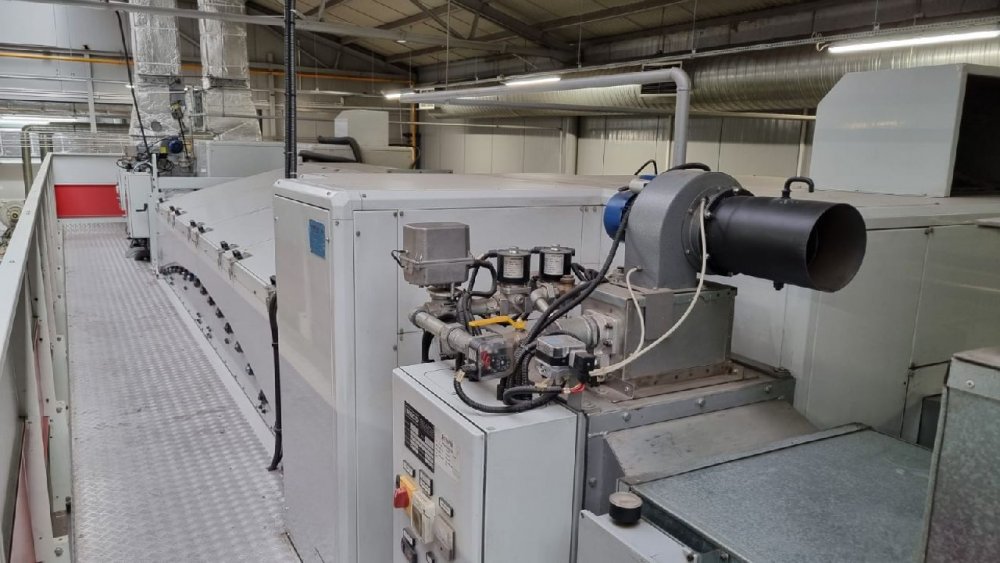

- 2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger
- Videocamera
- Yes GRAFIKONTROL GRAFISCAN
- Web guides
- yes in and out

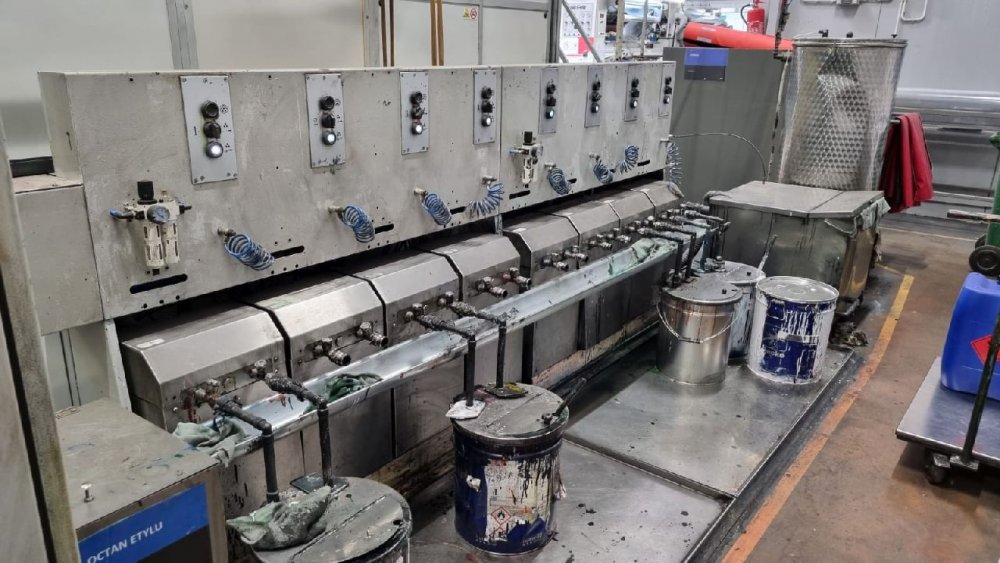

- Vyscosity control
- Yes Automatic by Gama
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 1x15 cm3/m 2 - 150 l/cm HVP 1x14 cm3/m2- 160 l/cm HVP 1x3,8 cm3/m2- 420 l/cm 60 1x4 cm3/m2 -420 l/cm 60 1x3,8 cm3/m2 - 420 l/cm 60 1x3,8 cm3/m3 - 420 l/cm 60 1x4 cm3/m2 - 420 l/cm IPRO 1x4 cm3/m2 -420 l/cm 1x5 cm3/m2 - 420 l/cm 60 2x10 cm3/m2 - 200 l/cm HYBRID 1x4,5 cm3/m2 - 420 l/7cm HYBRID 1x7,5 cm3/m2 - 280 l/cm STANDARD 1x12 cm3/m2 - 140 l/cm 60 1x7,5 cm3/m2- 280 l/cm HVP 1x8 cm3/m2 - 280 l/cm HYBRID
- Print Sleeves
- Sleeves : 6 sets of 8 sleeves -repeat 360, 400, 490, 510, 540, 580
- Note
- Option Plate MOunter Iriflex
Machine Code | FL1108 |
Manufacturer | UTECO |
Modello | ONYX 808 |
Year | 2011 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |

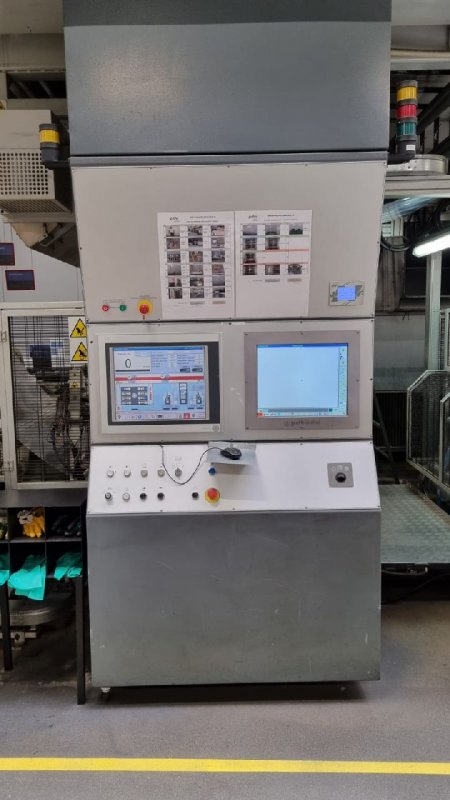

Computer supervision | Yes |
Web width (mm) | 1150 |
Print width (mm) | 1100 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 800 |

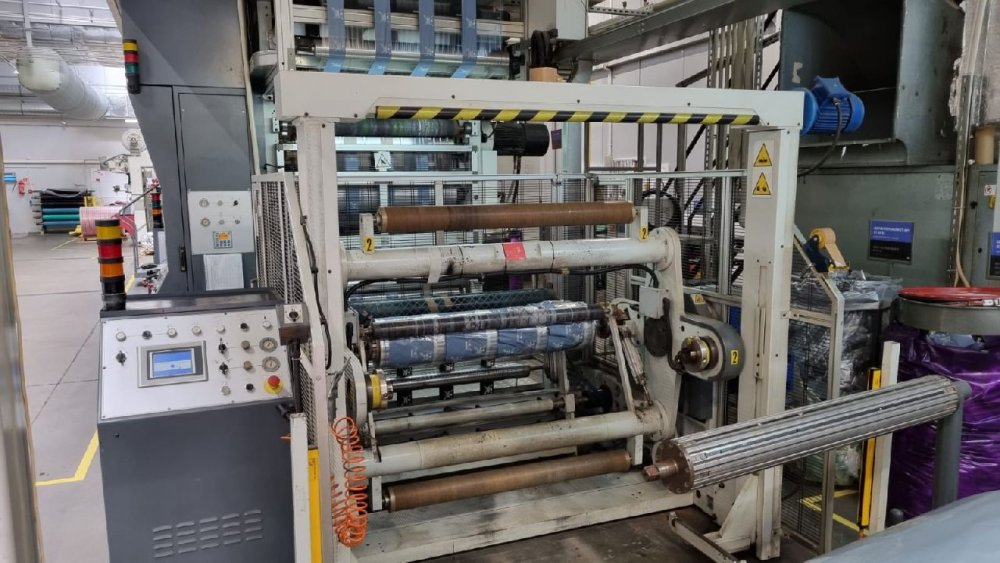

Unwinder type | Turret automatic |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret automatic |
Max reel diameter rewinder (mm) | 1000 |

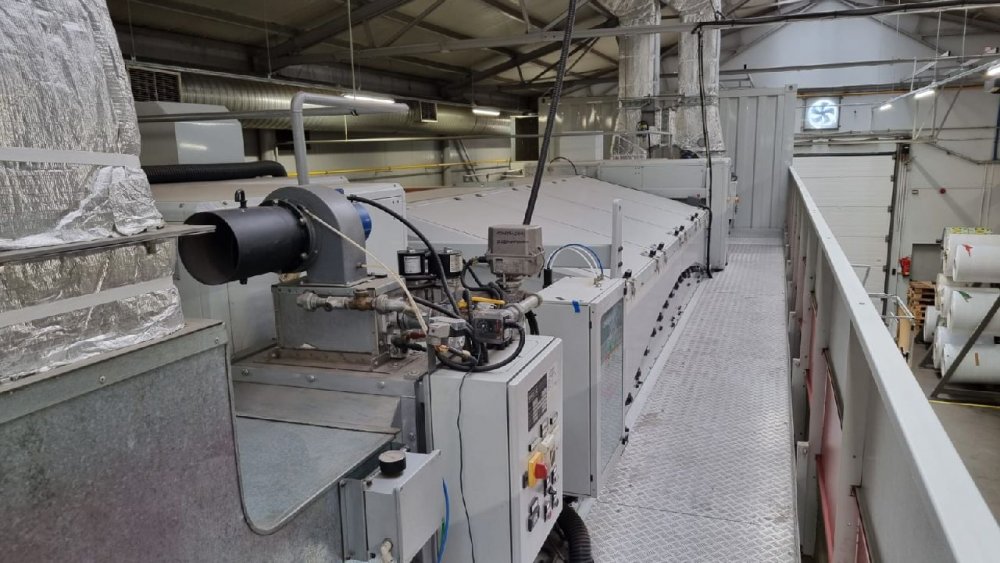

Drying | 2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger |

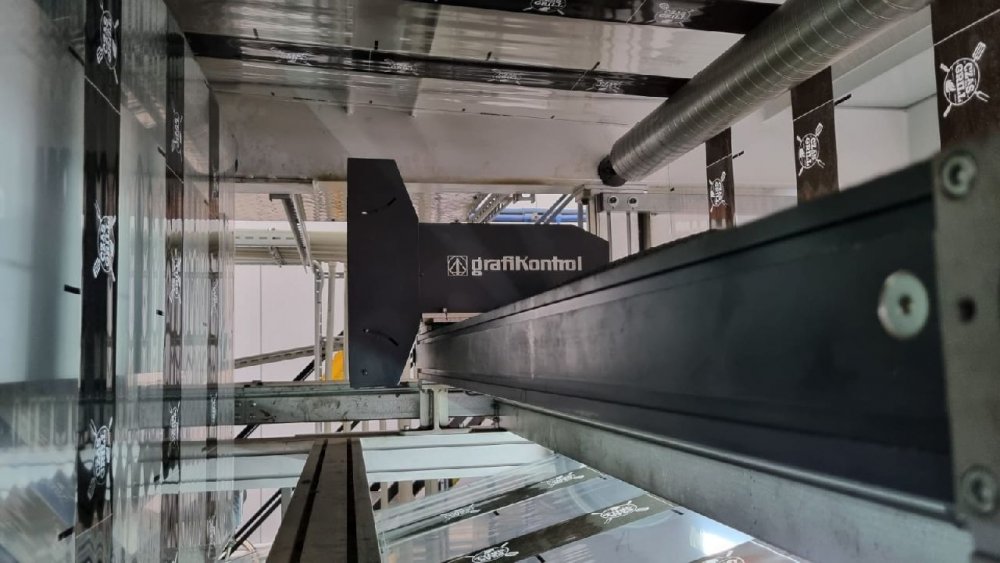

Videocamera | Yes GRAFIKONTROL GRAFISCAN |
Web guides | yes in and out |
Vyscosity control | Yes Automatic by Gama |
Washing system | Yes automatic |
Inking system | Closed chamber doctor blades |
Anilox | 1x15 cm3/m 2 - 150 l/cm HVP 1x14 cm3/m2- 160 l/cm HVP 1x3,8 cm3/m2- 420 l/cm 60 1x4 cm3/m2 -420 l/cm 60 1x3,8 cm3/m2 - 420 l/cm 60 1x3,8 cm3/m3 - 420 l/cm 60 1x4 cm3/m2 - 420 l/cm IPRO 1x4 cm3/m2 -420 l/cm 1x5 cm3/m2 - 420 l/cm 60 2x10 cm3/m2 - 200 l/cm HYBRID 1x4,5 cm3/m2 - 420 l/7cm HYBRID 1x7,5 cm3/m2 - 280 l/cm STANDARD 1x12 cm3/m2 - 140 l/cm 60 1x7,5 cm3/m2- 280 l/cm HVP 1x8 cm3/m2 - 280 l/cm HYBRID |
Print Sleeves | Sleeves : 6 sets of 8 sleeves -repeat 360, 400, 490, 510, 540, 580 |
Note | Option Plate MOunter Iriflex |
