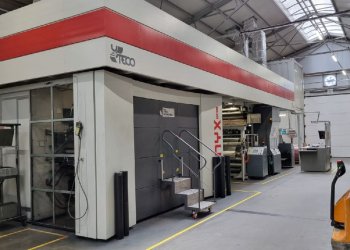

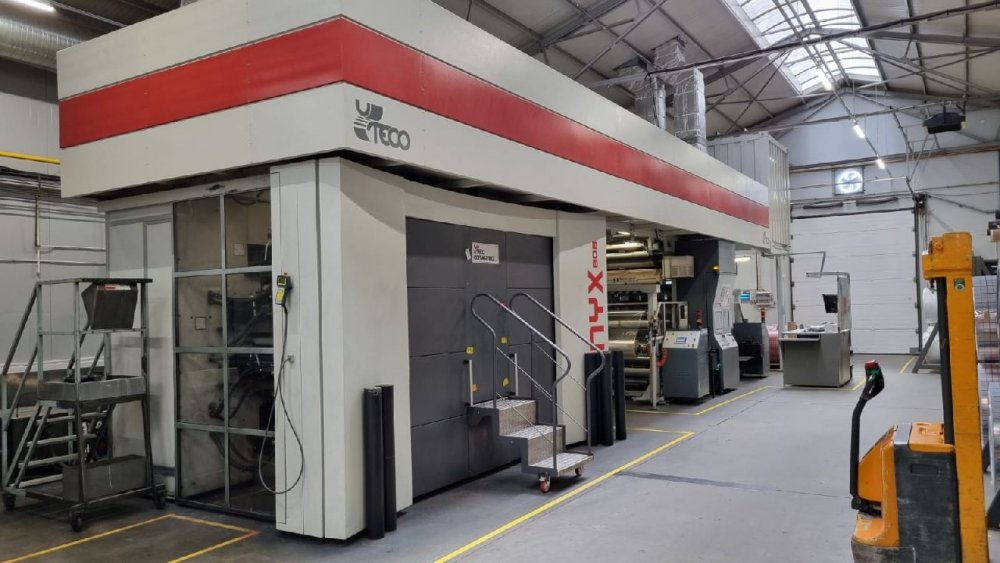

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1108
- Manufacturer
- UTECO
- Modello
- ONYX 808
- Year
- 2011
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

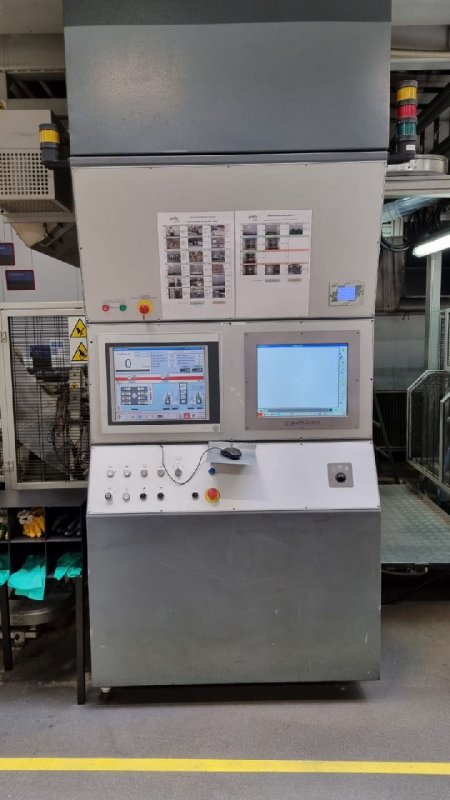

- Computer supervision
- Yes
- Web width (mm)
- 1150
- Print width (mm)
- 1100
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800

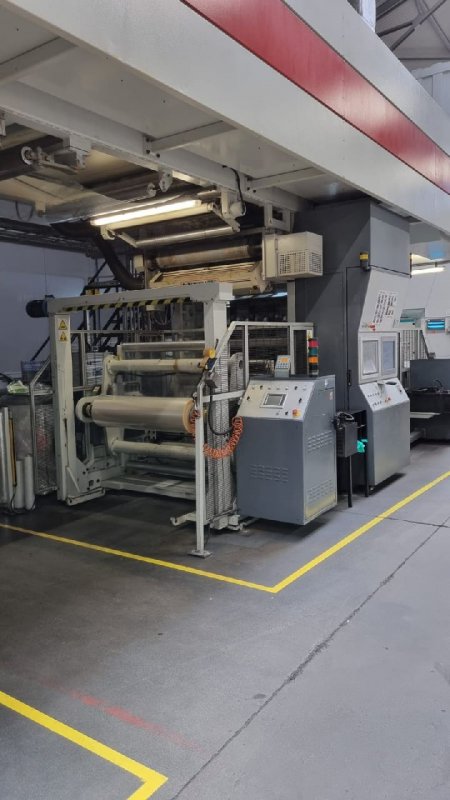

- Unwinder type
- Turret automatic Non stop complete with Roll Lifting system
- Max reel diameter unwinder (mm)
- 1000

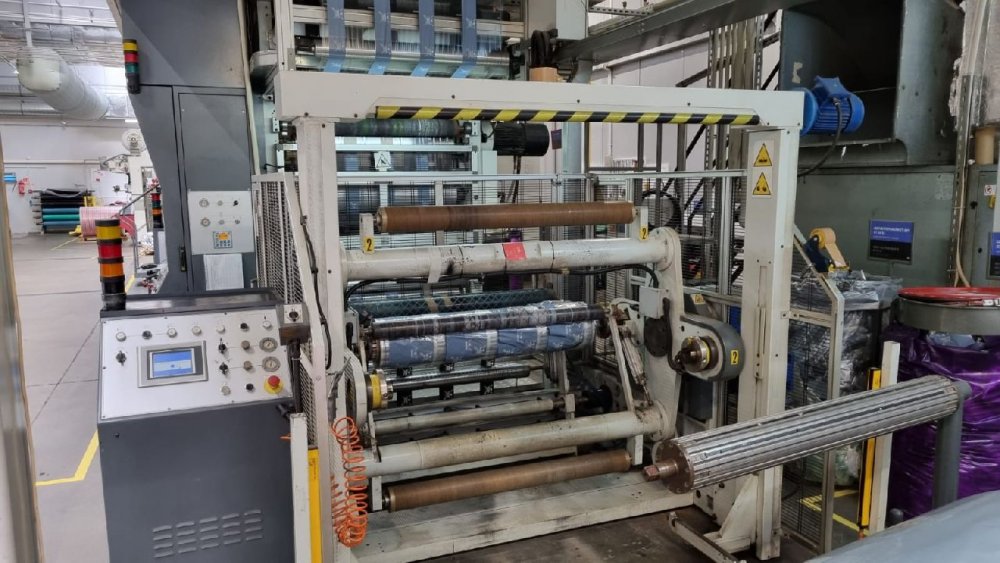

- Rewinder type
- Turret automatic Non stop complete with Roll unloadifng system
- Max reel diameter rewinder (mm)
- 1000

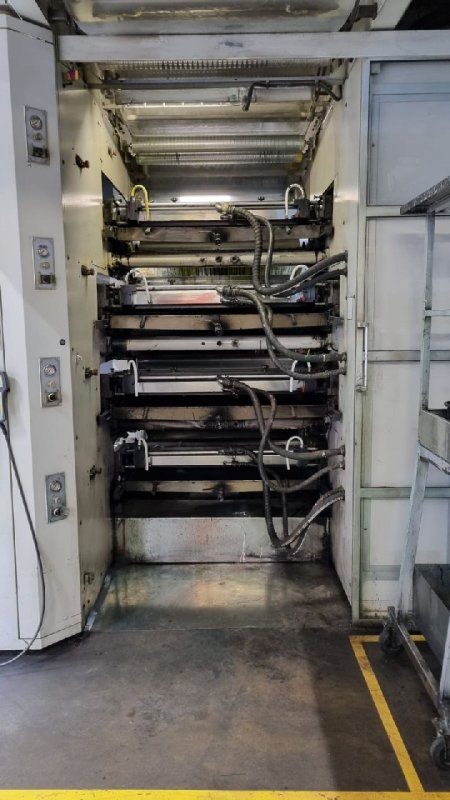

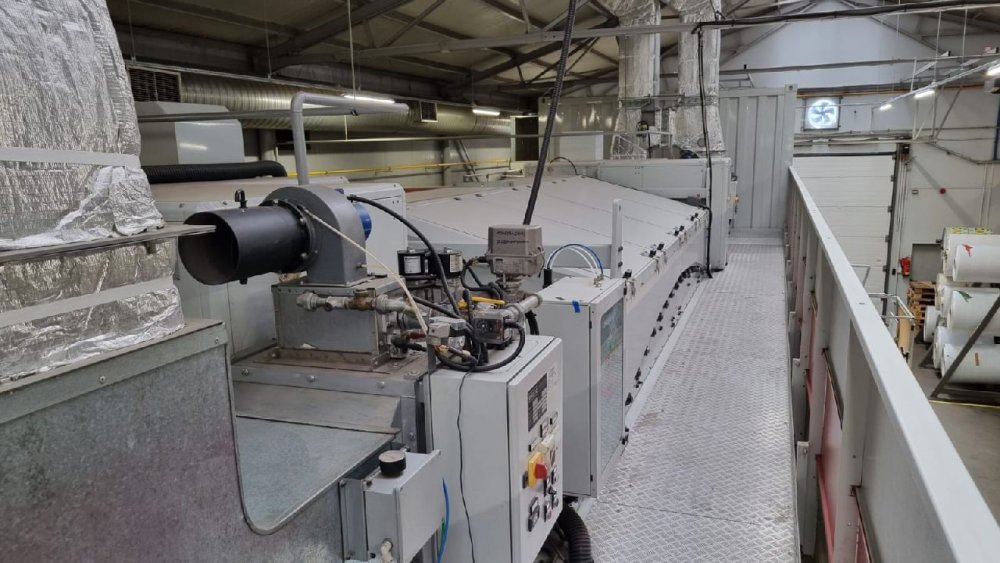

- Drying
- 2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger

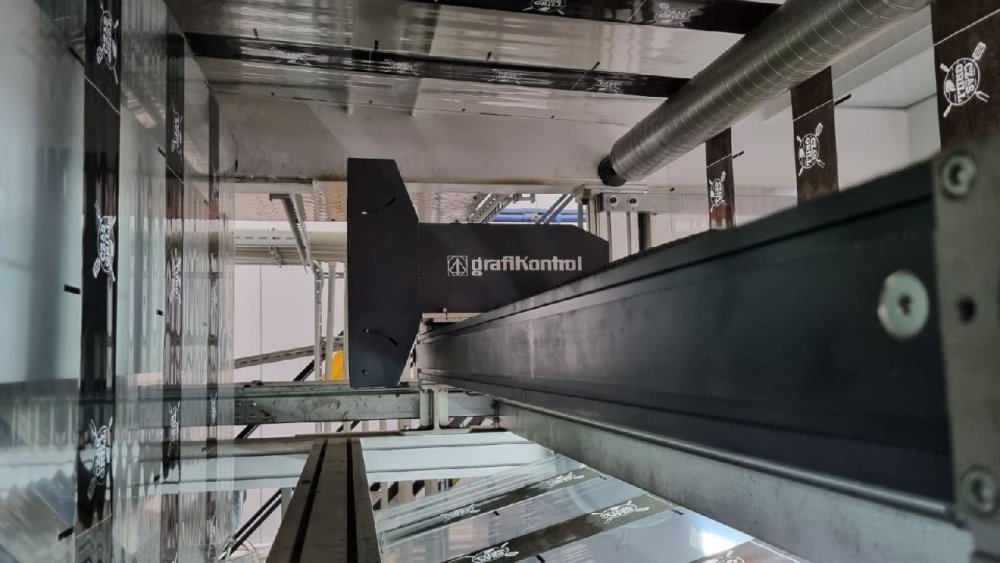

- Videocamera
- Yes GRAFIKONTROL GRAFISCAN
- Corona treatment
- Yes Ferrarini Benelli
- Web guides
- yes in and out

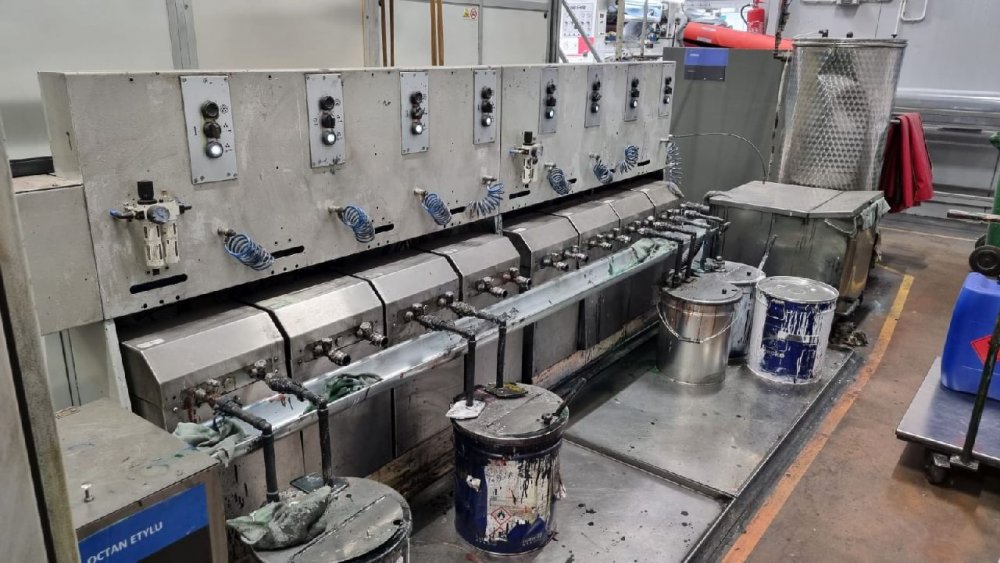

- Vyscosity control
- Yes Automatic by Gama
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 1x15 cm3/m 2 - 150 l/cm HVP 1x14 cm3/m2- 160 l/cm HVP 1x3,8 cm3/m2- 420 l/cm 60 1x4 cm3/m2 -420 l/cm 60 1x3,8 cm3/m2 - 420 l/cm 60 1x3,8 cm3/m3 - 420 l/cm 60 1x4 cm3/m2 - 420 l/cm IPRO 1x4 cm3/m2 -420 l/cm 1x5 cm3/m2 - 420 l/cm 60 2x10 cm3/m2 - 200 l/cm HYBRID 1x4,5 cm3/m2 - 420 l/7cm HYBRID 1x7,5 cm3/m2 - 280 l/cm STANDARD 1x12 cm3/m2 - 140 l/cm 60 1x7,5 cm3/m2- 280 l/cm HVP 1x8 cm3/m2 - 280 l/cm HYBRID
- Print Sleeves
- Sleeves : 6 sets of 8 sleeves -repeat 360, 400, 490, 510, 540, 580
- Note
- GRAFYKONTROL Clic and Drag Auto Register system Plate MoCamis unter Iriflex INCLUDED
| Machine Code | FL1108 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2011 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1150 |
| Print width (mm) | 1100 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic Non stop complete with Roll Lifting system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic Non stop complete with Roll unloadifng system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger |
| Videocamera | Yes GRAFIKONTROL GRAFISCAN |
| Corona treatment | Yes Ferrarini Benelli |
| Web guides | yes in and out |
| Vyscosity control | Yes Automatic by Gama |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 1x15 cm3/m 2 - 150 l/cm HVP 1x14 cm3/m2- 160 l/cm HVP 1x3,8 cm3/m2- 420 l/cm 60 1x4 cm3/m2 -420 l/cm 60 1x3,8 cm3/m2 - 420 l/cm 60 1x3,8 cm3/m3 - 420 l/cm 60 1x4 cm3/m2 - 420 l/cm IPRO 1x4 cm3/m2 -420 l/cm 1x5 cm3/m2 - 420 l/cm 60 2x10 cm3/m2 - 200 l/cm HYBRID 1x4,5 cm3/m2 - 420 l/7cm HYBRID 1x7,5 cm3/m2 - 280 l/cm STANDARD 1x12 cm3/m2 - 140 l/cm 60 1x7,5 cm3/m2- 280 l/cm HVP 1x8 cm3/m2 - 280 l/cm HYBRID |
| Print Sleeves | Sleeves : 6 sets of 8 sleeves -repeat 360, 400, 490, 510, 540, 580 |
| Note | GRAFYKONTROL Clic and Drag Auto Register system Plate MoCamis unter Iriflex INCLUDED |
