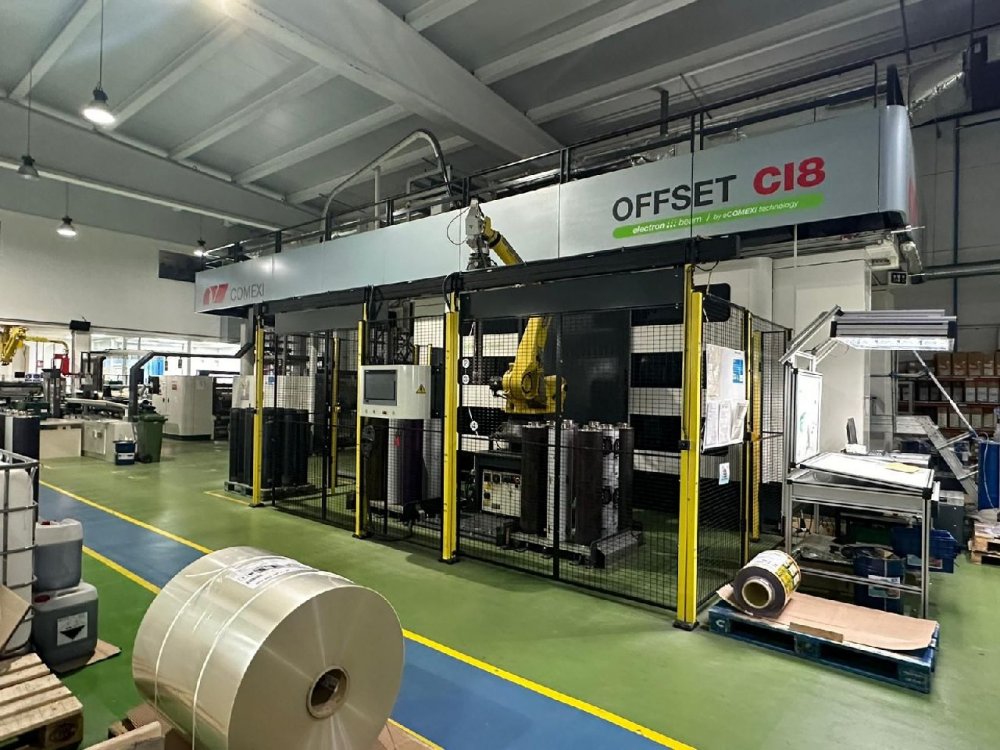

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1057
- Manufacturer
- COMEXI
- Modello
- OFFSET CI 8
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0 ( 7 offset units + 1 flexo unit )
- Gearless
- Yes
- Fast sleeve change
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1120
- Print width (mm)
- 1050
- Min print repeat (mm)
- 455
- Max print repeat (mm)
- 930
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Electron Beam curing system
- Videocamera
- Web VIdeostar 2000
- Corona treatment
- yes
- Web guides
- yes BST type OPG
- Note

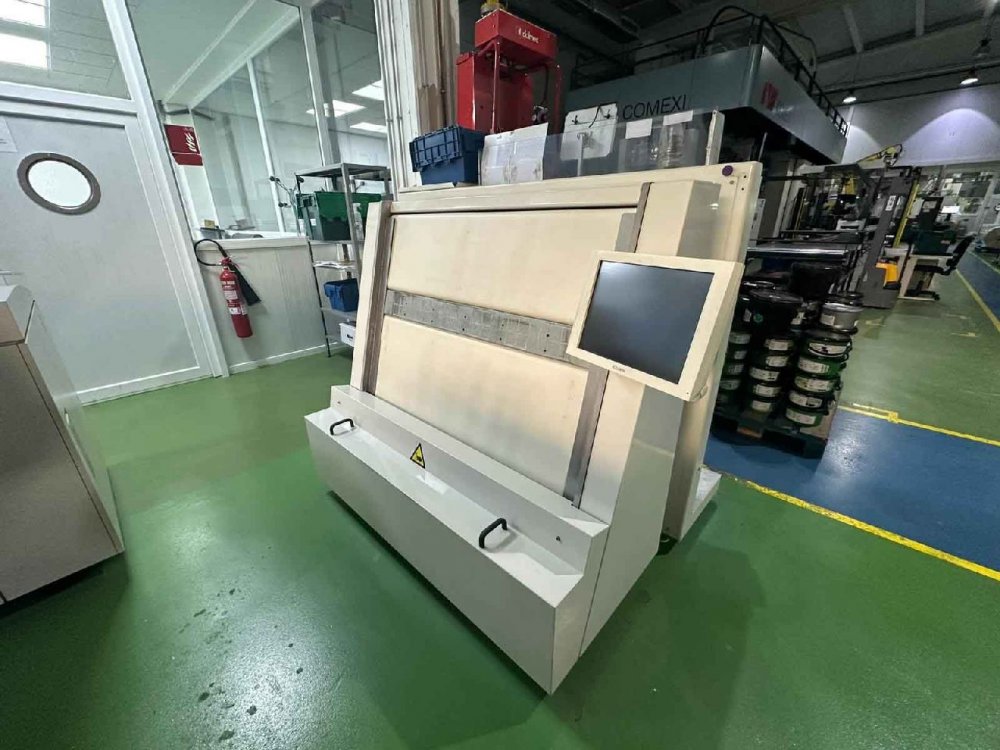

- Including CTP and Plate PROCESSOR Materials: LDPE : 20-150 microns LLDPE : 12-100 microns HDPE : 20-150 microns BOPP : 12-60 microns PET : 12-50 microns Paper : 40-120 gr
| Machine Code | FL1057 |
| Manufacturer | COMEXI |
| Modello | OFFSET CI 8 |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 ( 7 offset units + 1 flexo unit ) |
| Gearless | Yes |
| Fast sleeve change | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1120 |
| Print width (mm) | 1050 |
| Min print repeat (mm) | 455 |
| Max print repeat (mm) | 930 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Electron Beam curing system |
| Videocamera | Web VIdeostar 2000 |
| Corona treatment | yes |
| Web guides | yes BST type OPG |
| Note | Including CTP and Plate PROCESSOR Materials: LDPE : 20-150 microns LLDPE : 12-100 microns HDPE : 20-150 microns BOPP : 12-60 microns PET : 12-50 microns Paper : 40-120 gr |
