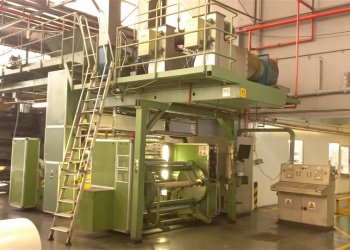

CARINT GEMINI Flexo central drum printing press 8 colors

CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
CARINT GEMINI Flexo central drum printing press 8 colors
** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery
Ask more informations
about a similar one
Machine Code
FL1032
Manufacturer
CARINT
Modello
GEMINI
Year
1995
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1260
Print width (mm)
1200
Min print repeat (mm)
320
Max print repeat (mm)
800
Unwinder type
Turret semi automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
Gas. two burners
Web guides
In and out
Inking system
Close chambered Doctor blade + ceramic anilox roller
Anilox
18 pieces from 100 to 397 l/cm
Print cylinders
from 360 to 650mm Totally 123 pieces
Note
Printing speed: up to 250 m/min
Machine Code FL1032
Manufacturer CARINT
Modello GEMINI
Year 1995
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1260
Print width (mm) 1200
Min print repeat (mm) 320
Max print repeat (mm) 800
Unwinder type Turret semi automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying Gas. two burners
Web guides In and out
Inking system Close chambered Doctor blade + ceramic anilox roller
Anilox 18 pieces from 100 to 397 l/cm
Print cylinders from 360 to 650mm Totally 123 pieces
Note Printing speed: up to 250 m/min
** SOLD **
