** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL1028
- Manufacturer

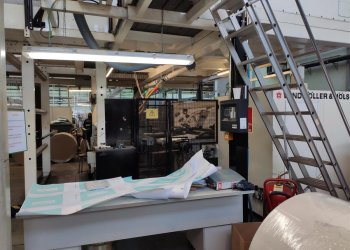

- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 1999
- Number of colors
- 8
- Print possibilityes
- 8-0
- Overhaul/renovation
- REWIND WEB GUIDE
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes

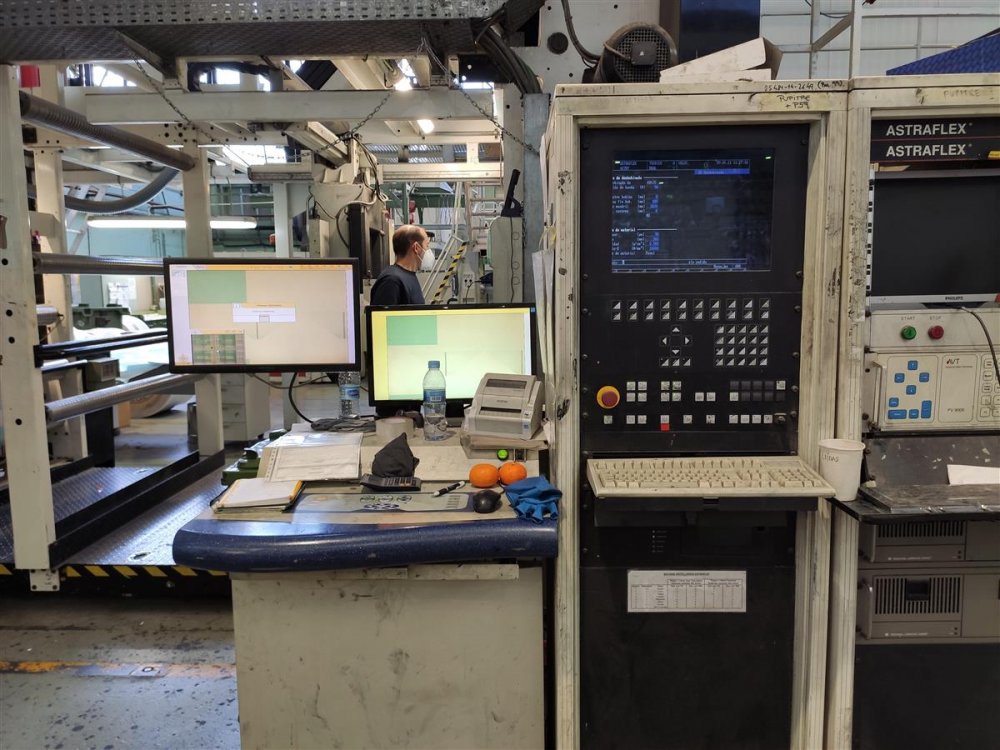

- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 410
- Max print repeat (mm)
- 1200
- Unwinder type
- AUTOMATIC TURRET
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- AUTOMATIC TURRET
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans final extended tunnel, THERMIC OIL heat exchangers . Thermo oil boiler INCLUDED
- Videocamera
- AVT Jupiter with Defekt control
- Corona treatment
- NO
- Web guides
- YES, BST
- Vyscosity control
- NO
- Washing system
- YES
- Anilox
- 21
- Print Sleeves
- 112
- Print cylinders
- 16
- Note
- TYPE OF MATERIAL PP,PE,PAPER IN LINE SLITTING 3 CUTS OIL THERMAL BOILER INCLUDED
Machine Code | FL1028 |
Manufacturer | WINDMÖLLER & HÖLSCHER |
Modello | ASTRAFLEX |
Year | 1999 |
Number of colors | 8 |
Print possibilityes | 8-0 |
Overhaul/renovation | REWIND WEB GUIDE |
Gearless | No |
Fast sleeve change | No |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1620 |
Print width (mm) | 1570 |
Min print repeat (mm) | 410 |
Max print repeat (mm) | 1200 |
Unwinder type | AUTOMATIC TURRET |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | AUTOMATIC TURRET |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones , 4 fans final extended tunnel, THERMIC OIL heat exchangers . Thermo oil boiler INCLUDED |
Videocamera | AVT Jupiter with Defekt control |
Corona treatment | NO |
Web guides | YES, BST |
Vyscosity control | NO |
Washing system | YES |
Anilox | 21 |
Print Sleeves | 112 |
Print cylinders | 16 |
Note | TYPE OF MATERIAL PP,PE,PAPER IN LINE SLITTING 3 CUTS OIL THERMAL BOILER INCLUDED |
