** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1028
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 1999
- Number of colors
- 8
- Print possibilityes
- 8-0
- Overhaul/renovation
- REWIND WEB GUIDE
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes

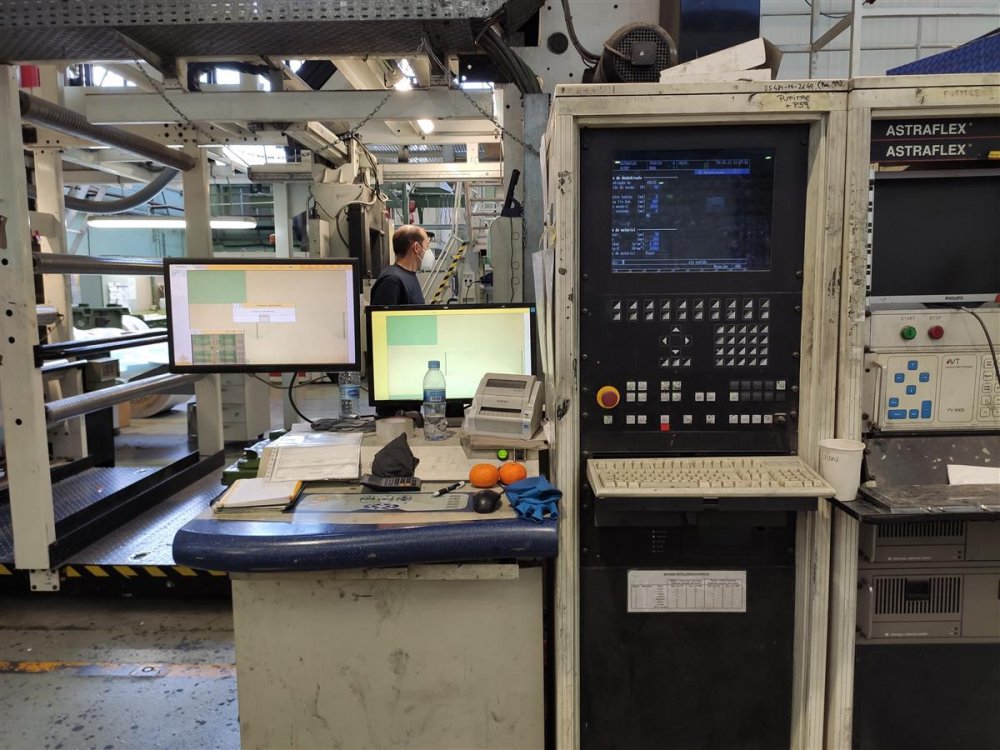

- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 410
- Max print repeat (mm)
- 1200
- Unwinder type
- AUTOMATIC TURRET
- Max reel diameter unwinder (mm)
- 1000

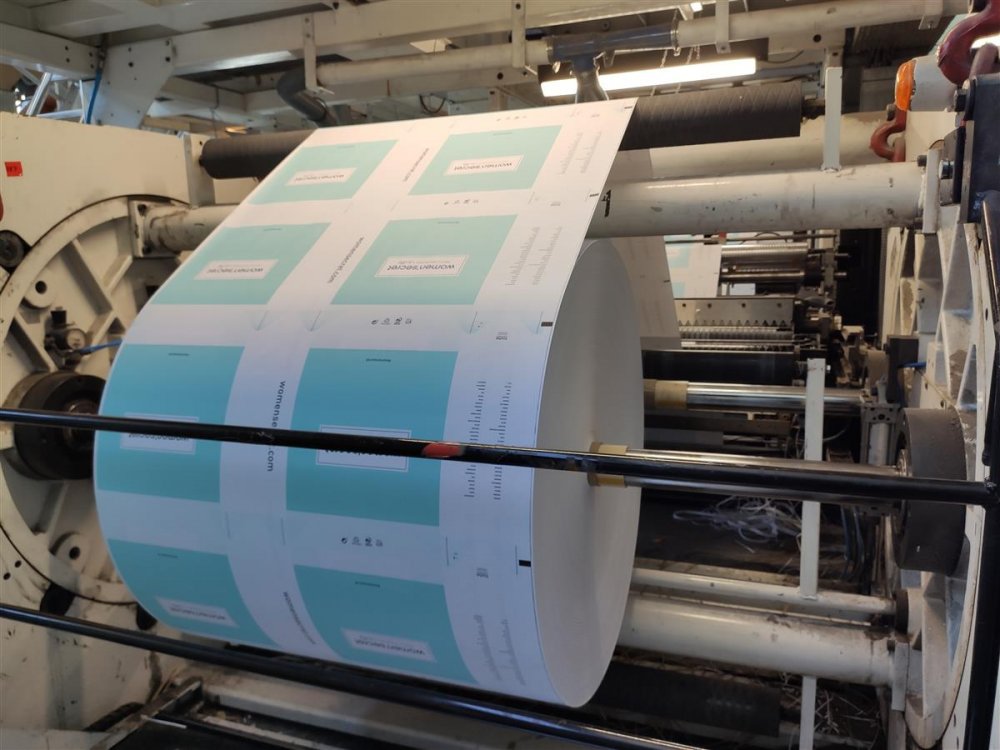

- Rewinder type
- AUTOMATIC TURRET
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans final extended tunnel, THERMIC OIL heat exchangers . Thermo oil boiler INCLUDED
- Videocamera
- AVT Jupiter with Defekt control
- Corona treatment
- NO
- Web guides
- YES, BST
- Vyscosity control
- NO
- Washing system
- YES
- Anilox
- 21
- Print Sleeves
- 112
- Print cylinders
- 16
- Note
- TYPE OF MATERIAL PP,PE,PAPER IN LINE SLITTING 3 CUTS OIL THERMAL BOILER INCLUDED
| Machine Code | FL1028 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 1999 |
| Number of colors | 8 |
| Print possibilityes | 8-0 |
| Overhaul/renovation | REWIND WEB GUIDE |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 410 |
| Max print repeat (mm) | 1200 |
| Unwinder type | AUTOMATIC TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | AUTOMATIC TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans final extended tunnel, THERMIC OIL heat exchangers . Thermo oil boiler INCLUDED |
| Videocamera | AVT Jupiter with Defekt control |
| Corona treatment | NO |
| Web guides | YES, BST |
| Vyscosity control | NO |
| Washing system | YES |
| Anilox | 21 |
| Print Sleeves | 112 |
| Print cylinders | 16 |
| Note | TYPE OF MATERIAL PP,PE,PAPER IN LINE SLITTING 3 CUTS OIL THERMAL BOILER INCLUDED |
