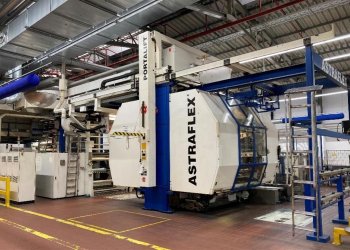

** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1018
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 2005
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 820
- Unwinder type
- Turret automatic and shaftless, chucks ofr cores 70 + 76mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic and shaftless, chucks ofr cores 70 + 76mm
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 thermal oil heat exchangers
- Videocamera
- AVT
- Vyscosity control
- automatic, Bloss
- Washing system
- Turbo-wash automatic washing system¨
- Inking system
- Closed chamber doctor blades
- Note
- - Portalift: Robot system for anilox and mandrel change - Mechanical speed 460 m/min - In line slitting system
| Machine Code | FL1018 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 2005 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 820 |
| Unwinder type | Turret automatic and shaftless, chucks ofr cores 70 + 76mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic and shaftless, chucks ofr cores 70 + 76mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 thermal oil heat exchangers |
| Videocamera | AVT |
| Vyscosity control | automatic, Bloss |
| Washing system | Turbo-wash automatic washing system¨ |
| Inking system | Closed chamber doctor blades |
| Note | - Portalift: Robot system for anilox and mandrel change - Mechanical speed 460 m/min - In line slitting system |
