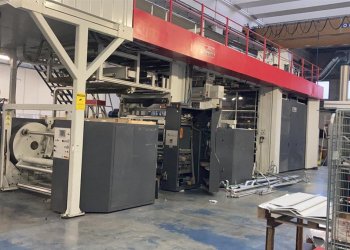

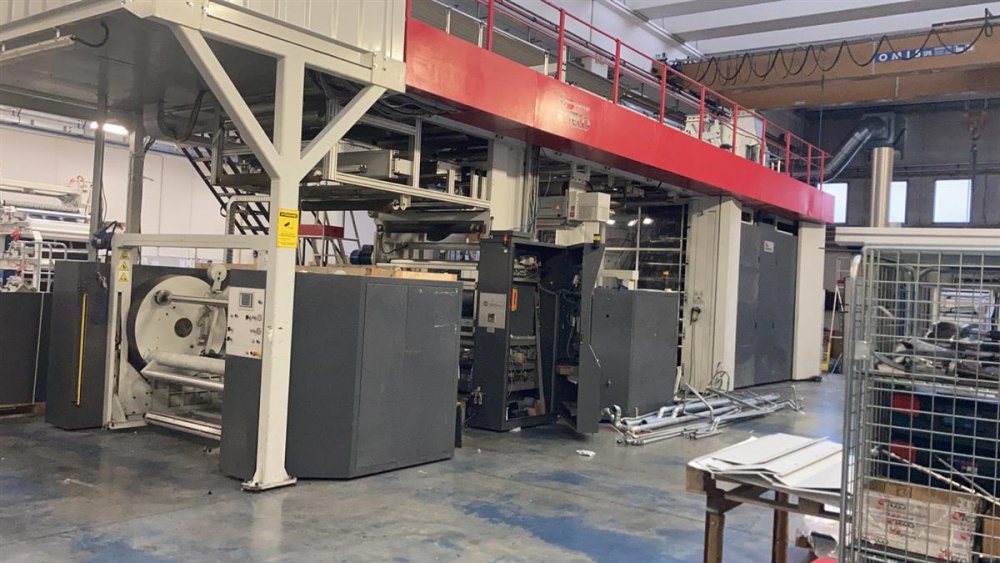

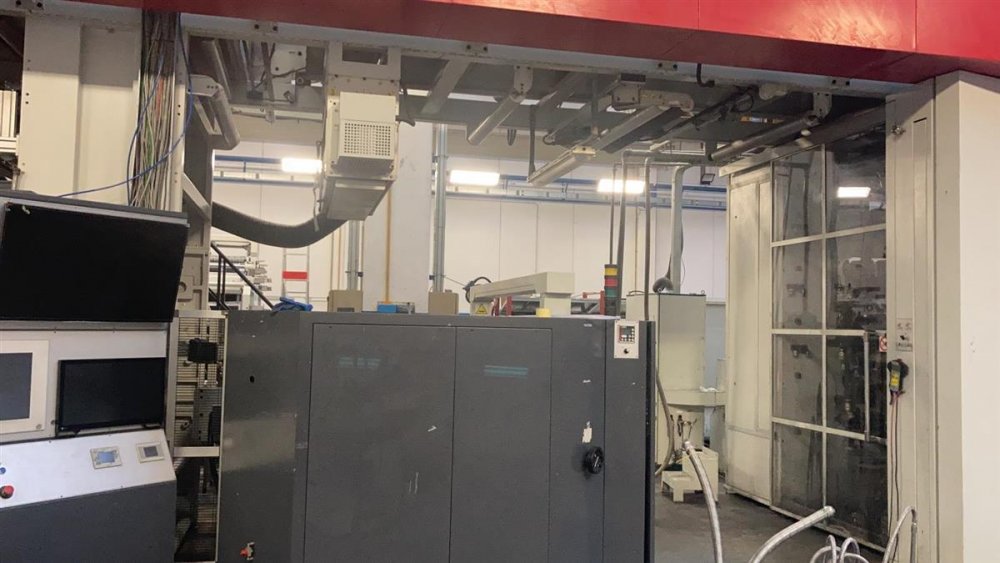

UTECO ONYX 108 Flexo printer 10 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Machine Code: FL926
Manufacturer: UTECO
Modello: ONYX 108
Year: 2013
Number of colors: 10
Print possibilityes: 10 +0
Gearless: Yes
Fast sleeve change: No
4 motor per deck CNC position system: Yes

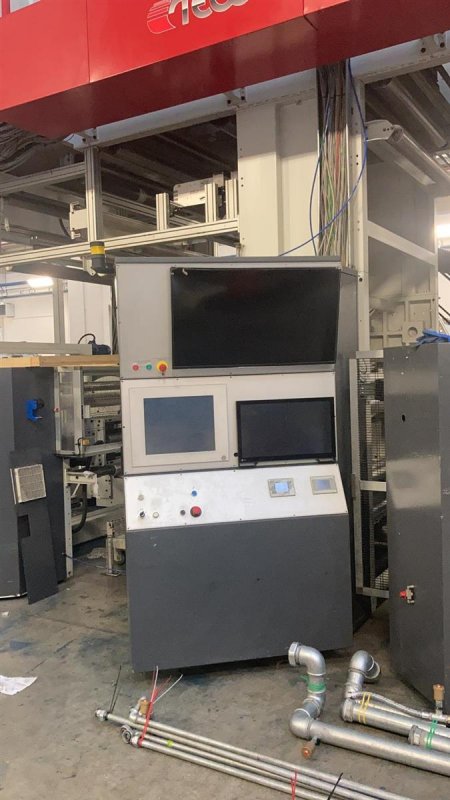

Computer supervision: Yes
Web width (mm): 1450
Print width (mm): 1400
Min print repeat (mm): 380
Max print repeat (mm): 800

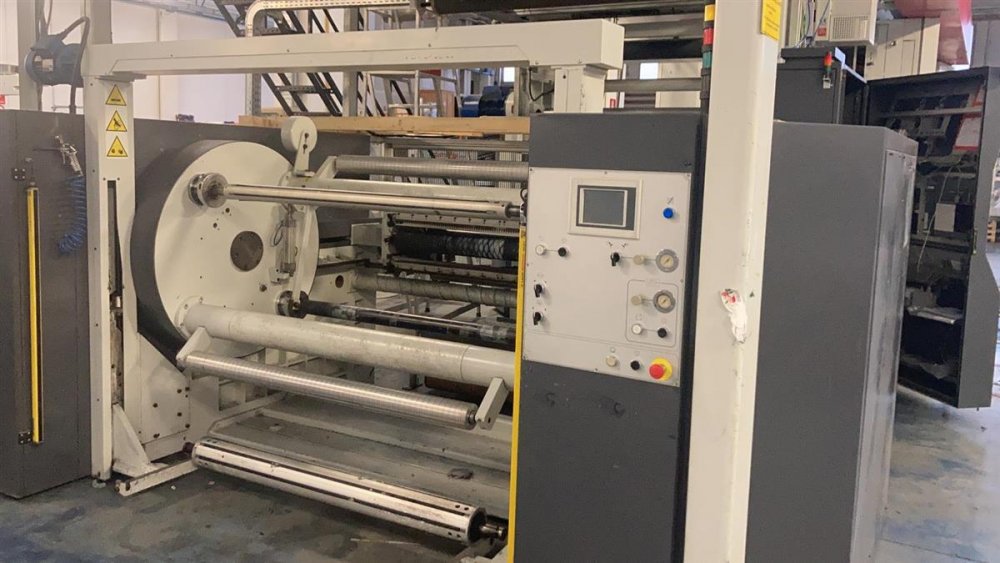

Unwinder type: Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter unwinder (mm): 1000
Rewinder type: Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter rewinder (mm): 1000

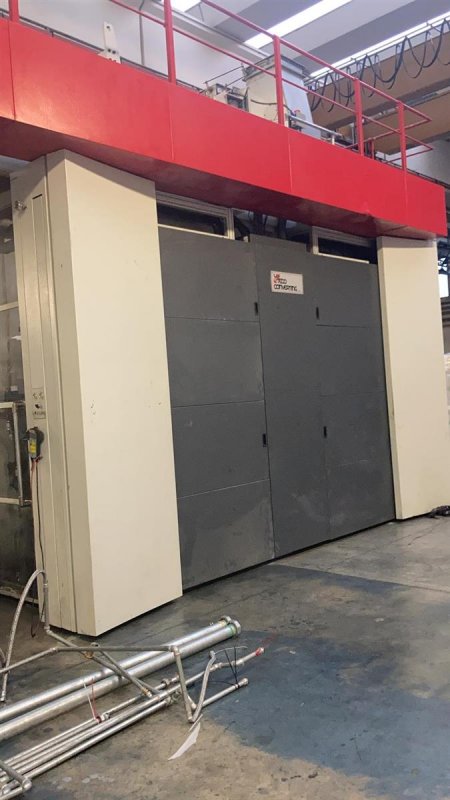

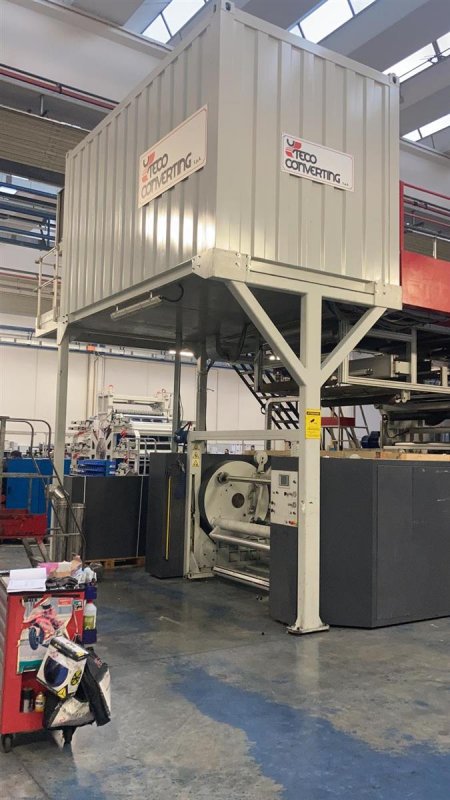

Drying: 2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
Videocamera: yes BST
Corona treatment: Option Ferrarini Benelli
Web guides: yes in and out

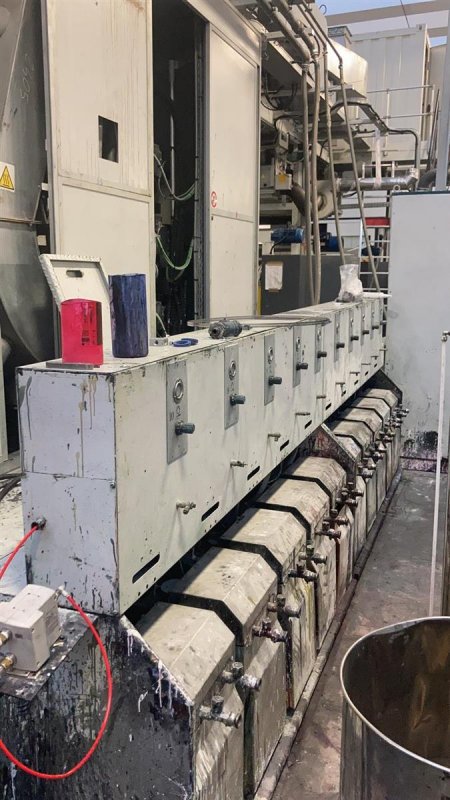

Vyscosity control: Yes included GAMA tipo G26-RIV-VIB c
Washing system: Yes included
Inking system: Closed chamber doctor blades

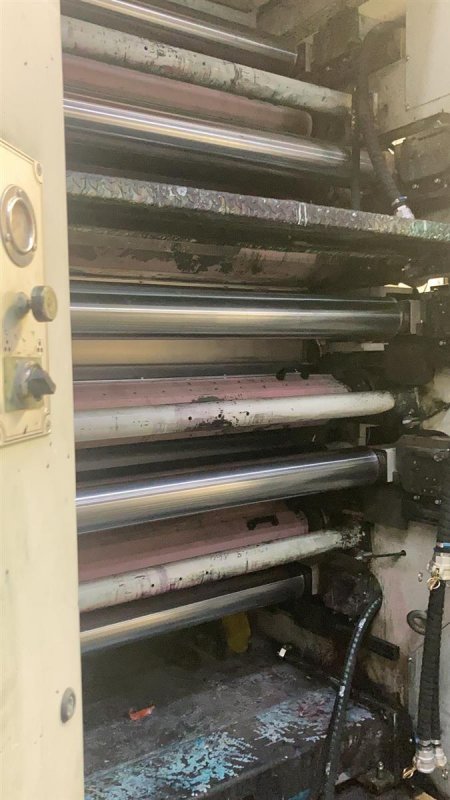

Anilox: 11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
Print Sleeves: total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
