** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL884
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- PRIMAFLEX
- Year
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

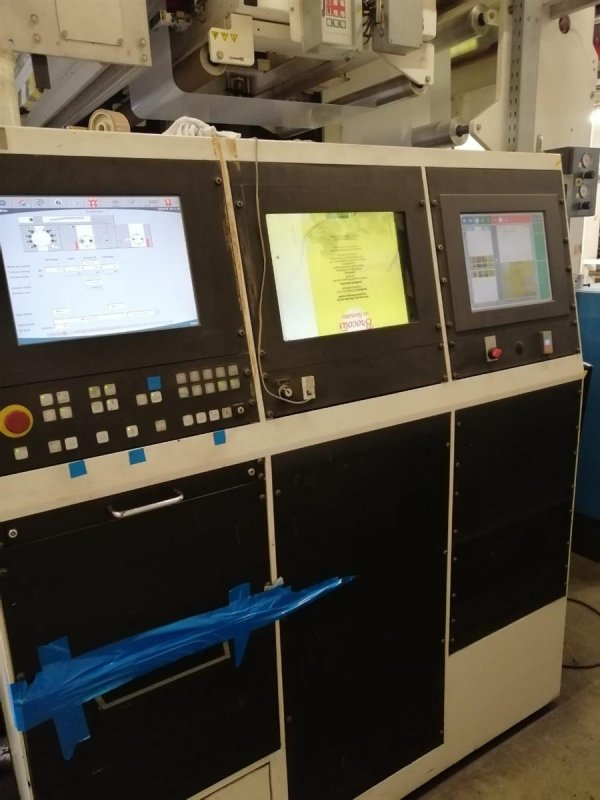

- Computer supervision
- Yes
- Web width (mm)
- 1070
- Print width (mm)
- 1020
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 760
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 800

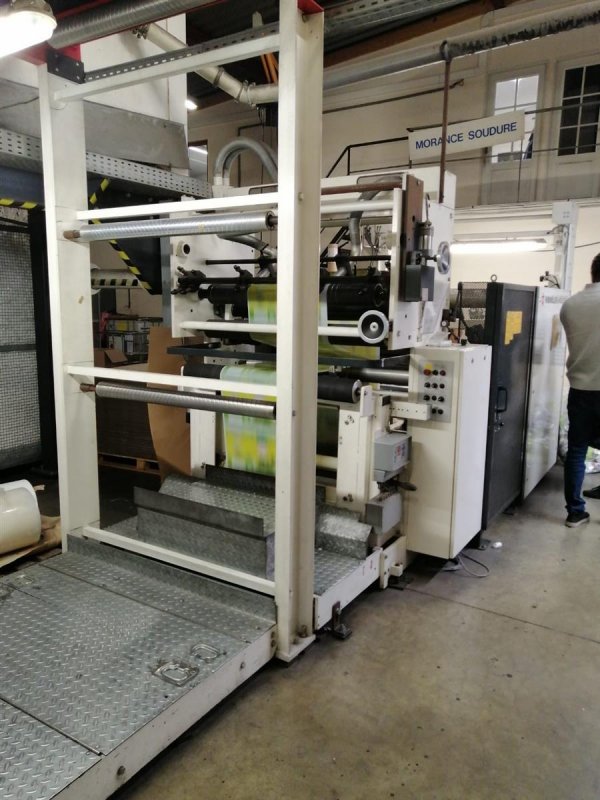

- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones - 4 fans -Thermo oil heat exchangers
- Videocamera
- Yes BST

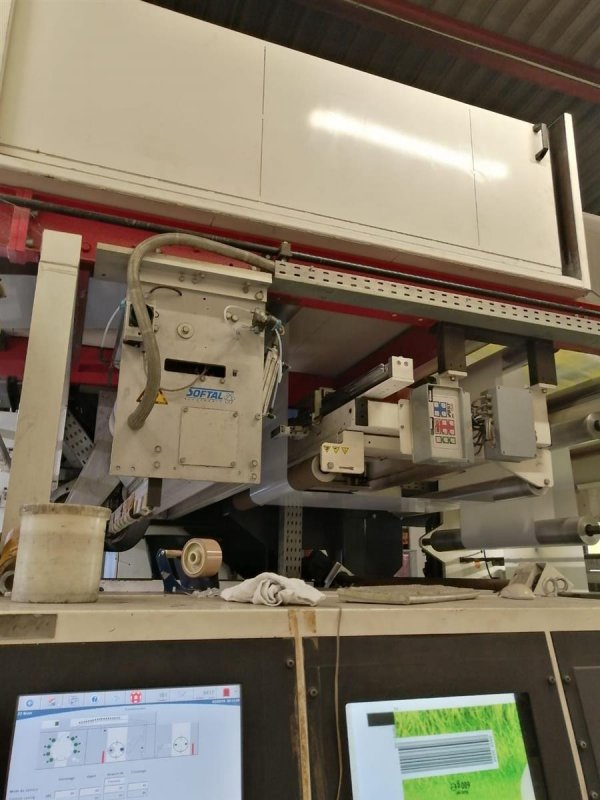

- Corona treatment
- Yes Softal
- Web guides
- Yes in and out
- Vyscosity control
- yes
- Inking system
- Closed chambe r doctor blades
- Anilox
- 12 Apex.
- Print Sleeves
- 17 sets from 30cm to 60cm
- Note

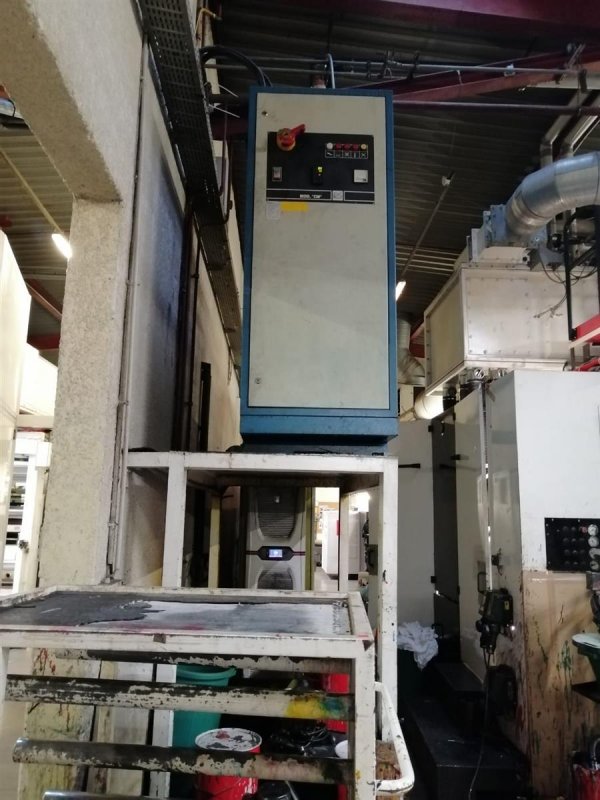

- Heating station for thermal oil
| Machine Code | FL884 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | PRIMAFLEX |
| Year | 2003 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1070 |
| Print width (mm) | 1020 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 760 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones - 4 fans -Thermo oil heat exchangers |
| Videocamera | Yes BST |
| Corona treatment | Yes Softal |
| Web guides | Yes in and out |
| Vyscosity control | yes |
| Inking system | Closed chambe r doctor blades |
| Anilox | 12 Apex. |
| Print Sleeves | 17 sets from 30cm to 60cm |
| Note | Heating station for thermal oil |
