** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL879
- Manufacturer
- FISCHER & KRECKE
- Modello
- 34 DF 8/CNC
- Year
- 1998
- Number of colors
- 10
- Print possibilityes
- 8+1 flexo +1 gravure
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 1000
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones on CI with 5 mt tunnel + 2 vertical drying hoods on flexo downstream + 2 vertical drying hoods on garvure
- Videocamera
- yes
- Corona treatment
- yes
- Web guides
- yes
- Inking system
- closed chamber doctor blades
- Print Sleeves
- various sets
- Note

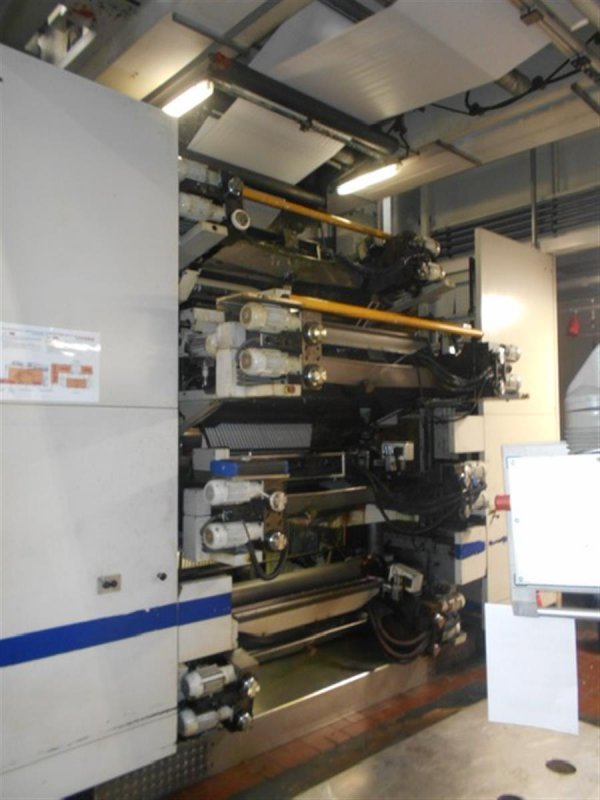

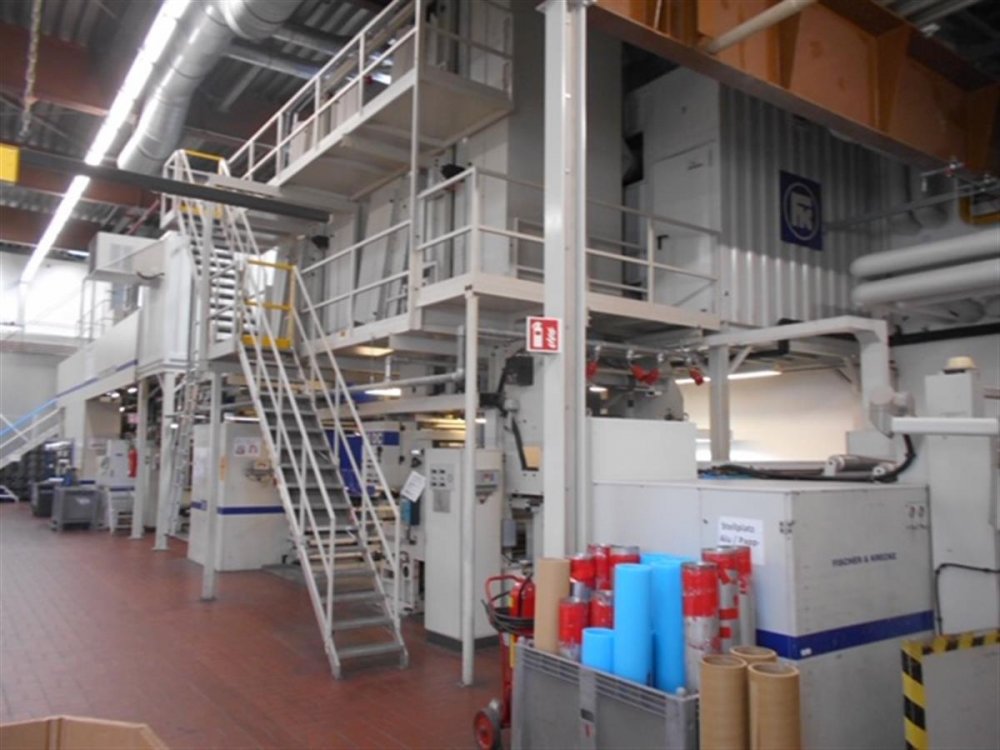

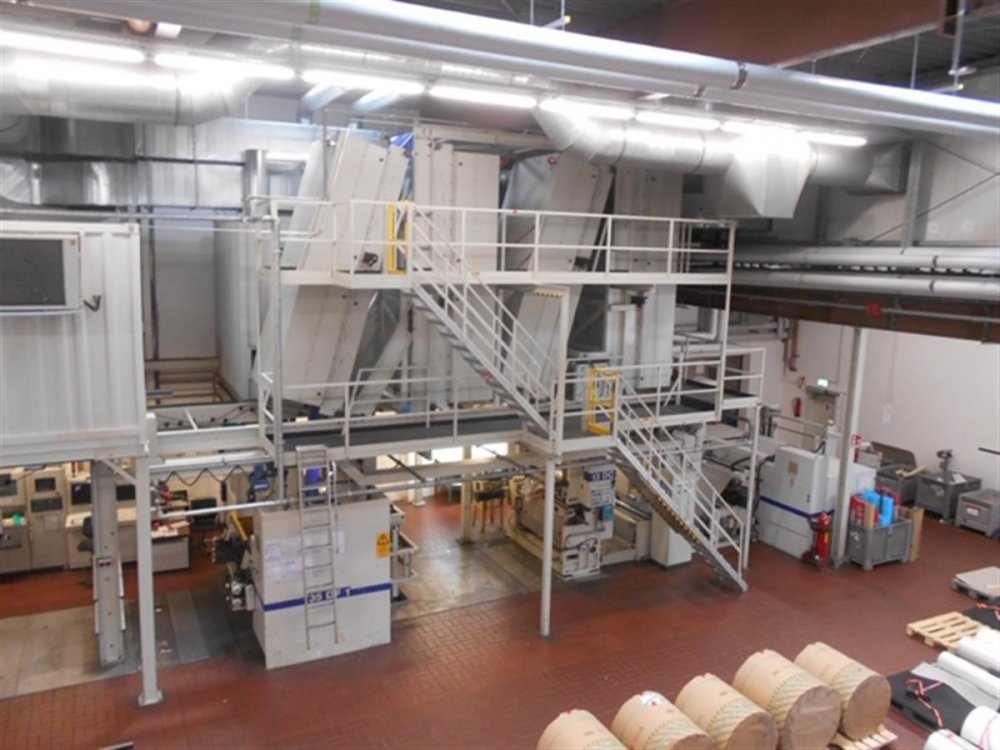

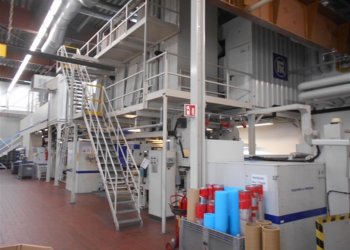

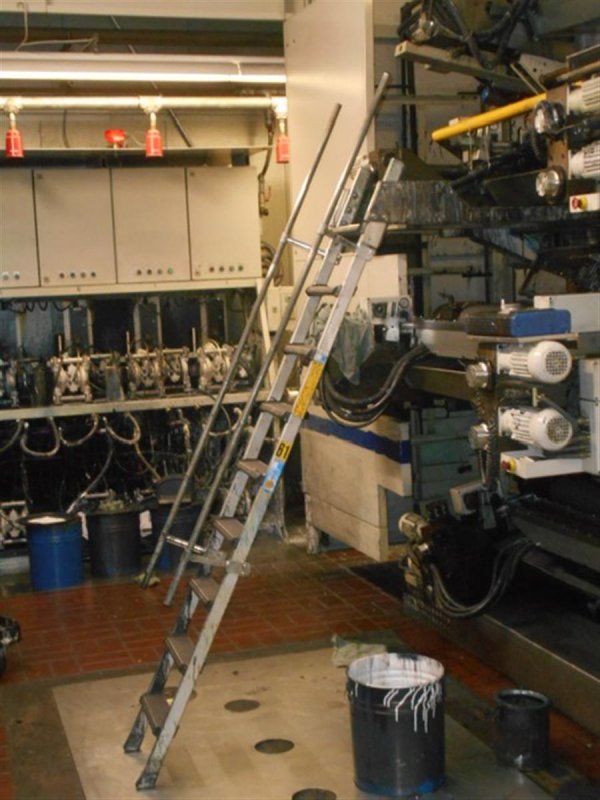

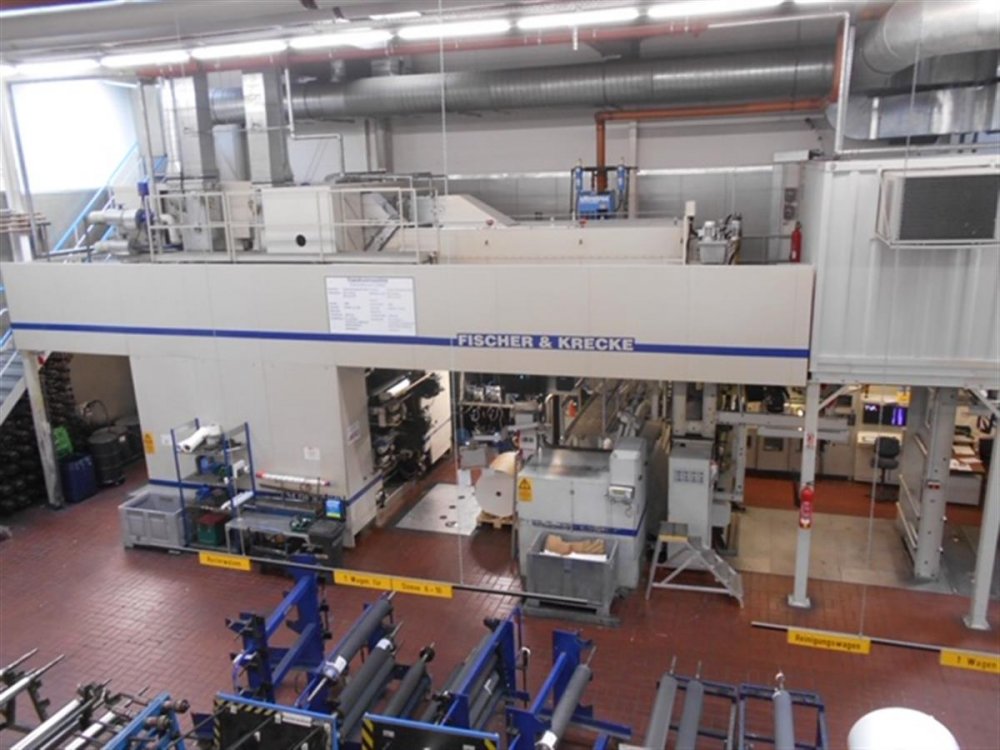

- 8 COLOR FLEXO on C.I. + 1 FLEXO DOWNSTREAM + 1 GRAVURE DOWNSTREAM Machine dimensions: Length appr 30 m Height 7,8 m Width 7,5 m
| Machine Code | FL879 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 34 DF 8/CNC |
| Year | 1998 |
| Number of colors | 10 |
| Print possibilityes | 8+1 flexo +1 gravure |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 1000 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones on CI with 5 mt tunnel + 2 vertical drying hoods on flexo downstream + 2 vertical drying hoods on garvure |
| Videocamera | yes |
| Corona treatment | yes |
| Web guides | yes |
| Inking system | closed chamber doctor blades |
| Print Sleeves | various sets |
| Note | 8 COLOR FLEXO on C.I. + 1 FLEXO DOWNSTREAM + 1 GRAVURE DOWNSTREAM Machine dimensions: Length appr 30 m Height 7,8 m Width 7,5 m |
