** SOLD **

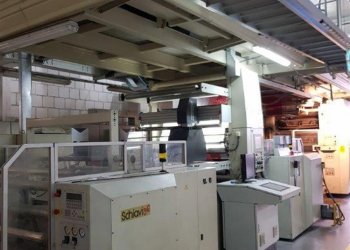

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL854
- Manufacturer
- SCHIAVI
- Modello
- SIGMA
- Year
- 2002
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans
- Videocamera
- BST Premius
- Web guides
- BST
- Vyscosity control
- Yes automatic New Celio
- Inking system
- Closed chamber doctor blades
- Anilox
- 26 anilox sleeves
- Print Sleeves
- 144
| Machine Code | FL854 |
| Manufacturer | SCHIAVI |
| Modello | SIGMA |
| Year | 2002 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 760 |
| Unwinder type | Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones 4 fans |
| Videocamera | BST Premius |
| Web guides | BST |
| Vyscosity control | Yes automatic New Celio |
| Inking system | Closed chamber doctor blades |
| Anilox | 26 anilox sleeves |
| Print Sleeves | 144 |
