** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL923
- Manufacturer

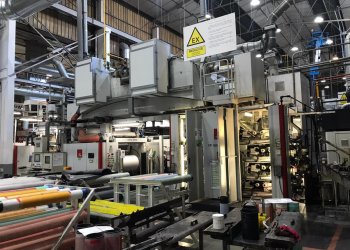

- COMEXI
- Modello
- FP1808 GL
- Year
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1070
- Print width (mm)
- 1020
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 700
- Unwinder type
- Turret automatic non stop with roll lifting system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic non stop with roll lifting system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol
- Videocamera
- Yes ELTROMAT Meshcon
- Corona treatment
- yes SHERMAN
- Web guides
- Yes in and out OPG system
- Vyscosity control
- Yes Inelme SICCT
- Washing system
- Automatic wash up system
- Inking system
- Closed chamber doctor blades and ceramic anilox sleeves
- Anilox
- 26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ;
- Print Sleeves
- 40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590
Machine Code | FL923 |
Manufacturer | COMEXI |
Modello | FP1808 GL |
Year | 2003 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1070 |
Print width (mm) | 1020 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 700 |
Unwinder type | Turret automatic non stop with roll lifting system |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret automatic non stop with roll lifting system |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol |
Videocamera | Yes ELTROMAT Meshcon |
Corona treatment | yes SHERMAN |
Web guides | Yes in and out OPG system |
Vyscosity control | Yes Inelme SICCT |
Washing system | Automatic wash up system |
Inking system | Closed chamber doctor blades and ceramic anilox sleeves |
Anilox | 26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ; |
Print Sleeves | 40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590 |
