** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL899
- Manufacturer

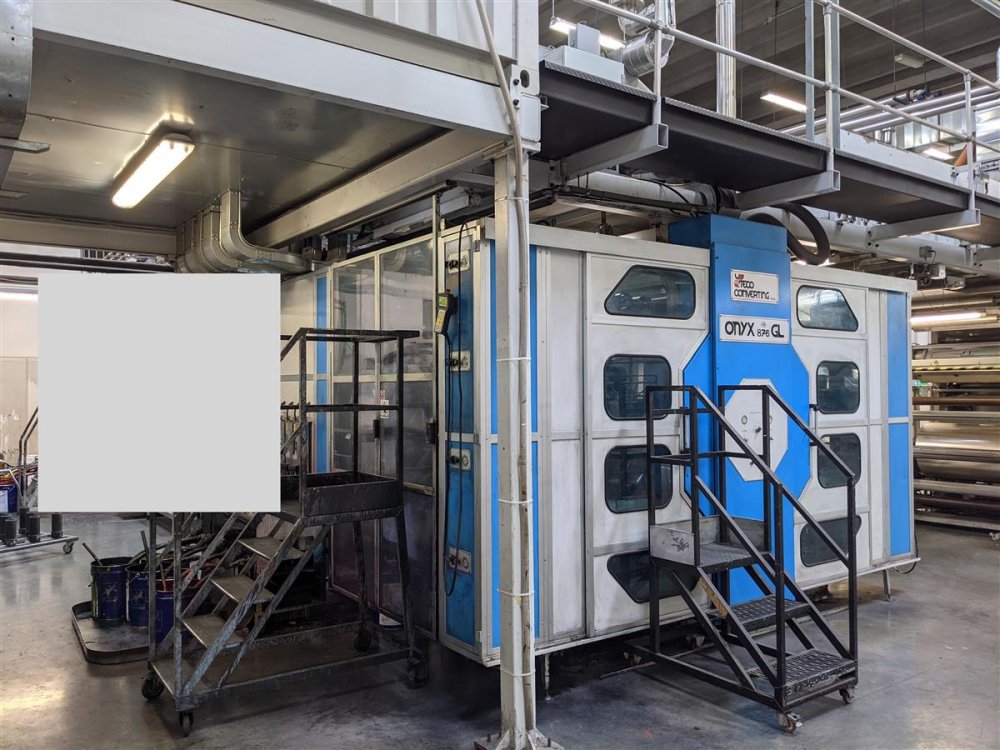

- UTECO
- Modello
- ONYX 808
- Year
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes

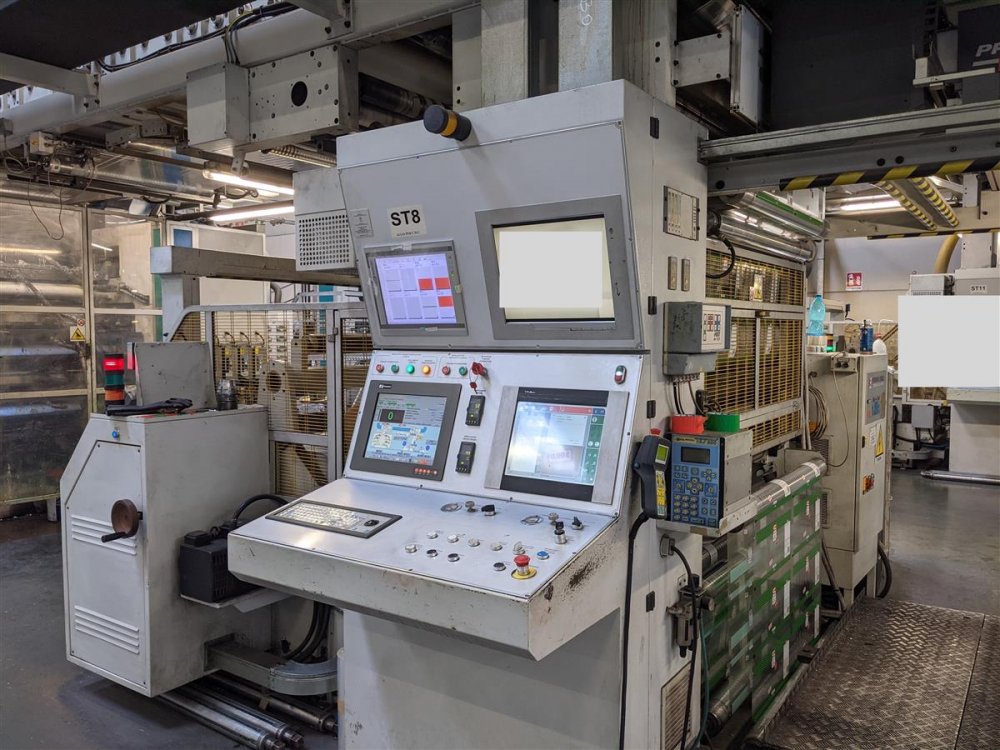

- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers
- Videocamera
- BST Premius Digital 3 chip
- Web guides
- yes in and out
- Vyscosity control
- yes by Fasnacht
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15
- Print Sleeves
- 56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69
- Print cylinders
- 9 carbon fiber carriers
- Note
- Reprint system with insetter register control and Driven infeed nip calender
| Machine Code | FL899 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2007 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers |
| Videocamera | BST Premius Digital 3 chip |
| Web guides | yes in and out |
| Vyscosity control | yes by Fasnacht |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15 |
| Print Sleeves | 56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69 |
| Print cylinders | 9 carbon fiber carriers |
| Note | Reprint system with insetter register control and Driven infeed nip calender |
