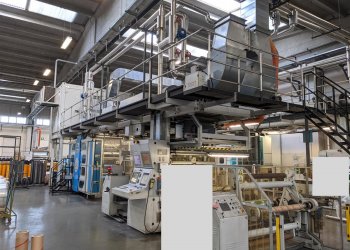

UTECO ONYX 808 Flexo printer 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL899
Manufacturer: UTECO
Modello: ONYX 808
Year: 2007
Number of colors: 8
Print possibilityes: 8+0
Gearless: Yes
Fast sleeve change: No
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1250
Print width (mm): 1200
Min print repeat (mm): 330
Max print repeat (mm): 800
Unwinder type: Turret automatic
Max reel diameter unwinder (mm): 800
Rewinder type: Turret automatic
Max reel diameter rewinder (mm): 800
Drying: 2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers
Videocamera: BST Premius Digital 3 chip
Web guides: yes in and out
Vyscosity control: yes by Fasnacht
Washing system: Yes automatic
Inking system: Closed chamber doctor blades
Anilox: 12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15
Print Sleeves: 56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69
Print cylinders: 9 carbon fiber carriers
Note: Reprint system with insetter register control and Driven infeed nip calender

Machine Code	FL899
Manufacturer	UTECO
Modello	ONYX 808
Year	2007
Number of colors	8
Print possibilityes	8+0
Gearless	Yes
Fast sleeve change	No
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1250
Print width (mm)	1200
Min print repeat (mm)	330
Max print repeat (mm)	800
Unwinder type	Turret automatic
Max reel diameter unwinder (mm)	800
Rewinder type	Turret automatic
Max reel diameter rewinder (mm)	800
Drying	2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers
Videocamera	BST Premius Digital 3 chip
Web guides	yes in and out
Vyscosity control	yes by Fasnacht
Washing system	Yes automatic
Inking system	Closed chamber doctor blades
Anilox	12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15
Print Sleeves	56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69
Print cylinders	9 carbon fiber carriers
Note	Reprint system with insetter register control and Driven infeed nip calender
