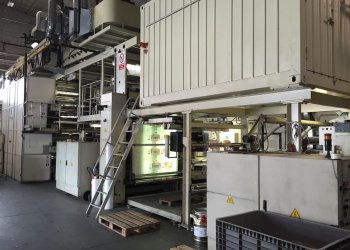

FLEXOTECNICA POLICROM Flexo central drum printing press 10 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Machine Code: FL667
Manufacturer: FLEXOTECNICA
Modello: POLICROM
Year: 2007
Number of colors: 10
Gearless: No
Fast sleeve change: No
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1630
Print width (mm): 1500
Min print repeat (mm): 330
Max print repeat (mm): 1100
Unwinder type: Automatic
Max reel diameter unwinder (mm): 1000
Rewinder type: Automatic
Max reel diameter rewinder (mm): 1000
Drying: Battery at diathermic oil
Videocamera: AVT
Web guides: Yes in and out
Vyscosity control: Gama
Inking system: Solvent based
Anilox: 34
Print cylinders: 282 as follows: 8x330,340,350,360,380,410,420,440,480,510,540,550,570,600,610,620,630,650,680,710,840; 16x370,400; 10x390,580,670,830,850; 20x500; 12x660 mm
Note: Motorized registers Thickness cliche 1,14 to 2,84 Cores diam 76-152mm Speed 300mt/min Materials PE, PP, ETC

Machine Code	FL667
Manufacturer	FLEXOTECNICA
Modello	POLICROM
Year	2007
Number of colors	10
Gearless	No
Fast sleeve change	No
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1630
Print width (mm)	1500
Min print repeat (mm)	330
Max print repeat (mm)	1100
Unwinder type	Automatic
Max reel diameter unwinder (mm)	1000
Rewinder type	Automatic
Max reel diameter rewinder (mm)	1000
Drying	Battery at diathermic oil
Videocamera	AVT
Web guides	Yes in and out
Vyscosity control	Gama
Inking system	Solvent based
Anilox	34
Print cylinders	282 as follows: 8x330,340,350,360,380,410,420,440,480,510,540,550,570,600,610,620,630,650,680,710,840; 16x370,400; 10x390,580,670,830,850; 20x500; 12x660 mm
Note	Motorized registers Thickness cliche 1,14 to 2,84 Cores diam 76-152mm Speed 300mt/min Materials PE, PP, ETC
